 FIREROL High Temperature Single Core Unsheathed Cables 3000 V

NF F 63-827 (FRF-HT-3SU)

Rolling Stock Cables

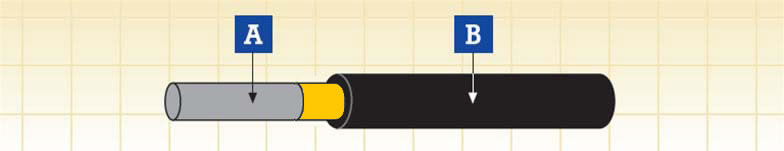

                                                           A. Conductor            B. Insulation

Application

These cables are used as signal and control cable for protected installations inside and outside of rail and

transport vehicles, where space and weight are an important factor, suitable for use in cable harnesses,

switchboards and control panels, driver desks etc

Construction

Conductor

Stranded tinned copper wires to IEC 60228 Class 5

Separator

Polyester tape

Insulation

Halogen free silicone rubber

Electrical & Mechanical Properties

Nominal Voltage:3000V

Maximum Conductor Temperature:120°C/140°C

Minimum Permissible Ambient Temperature:-40°C~+135°C

Bending Radius:4 × Overall Diameter

Standards

NF F 63-827

NF F 16-101

Fire Performance in general

EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) Vertical flame propogation for a single insulated wire or cable
EN 50266-2-4 + EN 50305; IEC 60332-3-24;
NF C 32-070 2.2 (C1); VDE 0472 Teil 804
Vertical flame spread of vertically mounted bunched wires or cables
EN 50268-2; IEC 61034-2; NF C 32-073 ;
NF C 20-902; NF F 16 101; VDE 0472 Teil 816
Low Smoke Emission
EN 50267-2-1; IEC 60754-1; NF C 32-074;NF C 20-454; VDE 0472 Teil 815 Halogen Free
EN 50267-2-2/3; IEC 60754-2; NF C 32-074;NF C 20-453; VDE 0472 Teil 813 Low Corrosivity (Acidity & Conductivity)
EN 50305; NFX 70-100; NFF 63808; TM1-04; BS6853 Low Toxicity
NFF 16101; NFF 63808; BS6853 Smoke index
EN45545-2 Requirement for fire behavior of materials & components
R15/R16

FRF-HT-3SU 3000V

Nominal Cross Sectional Area Number & Nominal Diameter of Strands Nominal Insulation Thickness Overall Diameter Weight
Min. Max.
mm² No/mm mm mm mm kg/km
2.5 50/0.25 2.3 6.4 7.2 65
4.0 56/0.30 2.3 7.0 7.8 85
6.0 84/0.30 2.3 7.5 8.3 108
10.0 80/0.40 2.3 8.4 9.5 160
16.0 126/0.40 2.3 9.7 10.8 230
25.0 196/0.40 2.3 11.0 12.2 310
35.0 276/0.40 2.4 12.2 13.5 420
50.0 396/0.40 2.5 14.2 15.5 580
70.0 360/0.50 2.7 16.1 17.7 790
95.0 475/0.50 2.7 18.0 19.8 1030
120.0 608/0.50 2.8 20.0 21.9 1250
150.0 756/0.50 2.8 21.8 23.8 1560
185.0 925/0.50 2.9 23.7 25.9 1880
240.0 1221/0.50 3.1 26.6 29.1 2420
